- Size: 10
- Place of Origin: China
- Brand Name: Wantong Foundry Equipment
- Model Number: WQZ Series
- Weight: 8000.000 kg

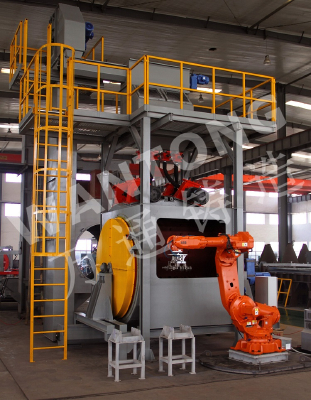

The innovative combination of robot with shot blast system is applied to auto industry for a full automatic, efficient and stabilized production requirement. WQZ Crankshaft shot blast robot can do the surface treatment for crankshaft, camshaft and related auto parts automatically. The surface of work piece after processing shows the metal original color and has no sand and oxyd at all. The surface roughness can meet the National Standard I (Ra25 - Ra12.5). Meanwhile, the machine can eliminate facial stress concentration and improve the work piece fatigue resistance and resistance to corrosion.
The advantage includes:
l Fast loading / unloading with robot
l Rotation worktable allows no dead band cleaning job
l Double working station allows high efficient
l Less space share & low wear parts consumption
The robot mounted with a special rack for loading & unloading enables a high efficiency and high accuracy job, also safety protection for the operators.
The worktable rotates simultaneously during the wheel blast working to assure every point of the work piece can be cleaned
A full chrome cast line is available in the chamber assures the durability of service life.
A rotary chamber is mounted inside of the worktable to let the double station alternate for loading & unloading.
The rotary chamber has a special design, in which there is a baffle to keep the shot blast station being sealed when it’s working, and two self balancing worktable to help the work piece laid on them steadily.
The advantage is achieved in less standby time, auto drop the abrasives when rotating, and high productivity.
Machine Type 设备名称 | Machine Model 设备型号 | Max. dimension of work-piece 最大工件尺寸(mm ) | Max. weight of work-piece 最大工件重量 (kg) | No. of wheel blaster and motor power 抛丸器数量和功率 ( pc x kw) | Productivity 生产率(pc/hr) |
Single Station 单工位曲轴抛丸清理机 | WQZD20 | 1000 x Ф200 | 200 | 4 x 22 | 90 - 180 |
Double Station 双工位曲轴抛丸清理机 | WQZS20 | 1000 x Ф200 | 200 | 4 x 22 | 180 - 300 |
